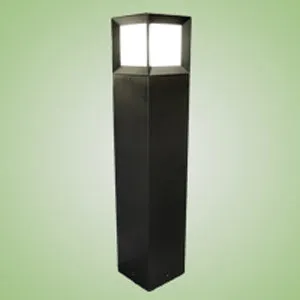

Techlight LBOL8S LED 8 Inch Square Bollard Light
Application
The LBOL8S was built to be both decorative and functional. They can be used to light pathways and walkways to help direct pedestrian traffic. They can add value to the aesthetics of a building or structure. The LED light source makes this fixture efficient as well as producing optimal color rendition.
Construction
The LED light source is housed within a aluminum LED body with heat dissipating fins. The fixture is made with a durable extruded aluminum housing with overall height of 47". A clear polycarbonate lens protects the optical system.
Finish
A Super Durable Polyester powder coat finish is electrostatically applied in our state of the art paint facility. Standard colors available: Black, Bronze, US Green, White. Custom colors available upon request.
Optical System
The fixture comes with an aluminum reflector that creates a symmetric light pattern. It reflects the light down and outward reducing light spillage.
Electrical System
A 36 watt LED source provides approximately 1833 (CW) Lumens of light.The LED Driver is mounted to an zinc plated steel ballast tray for easy installation.
Mounting
The bollard comes standard with a zinc base plate, three (3) 3/4" x 18" x 3" anchor bolts, and a rigid anchor bolt template. A centrally located wire entrance is provided. The housing is mounted to the base plate via flush mounting screws.
