Forward Lift 9,000 lbs. capacity 4 post lift, perfect for the home enthusiast. Reliable lift systems for independent repair shops, car dealerships, bodyshops, home enthusiasts, and heavy-duty truck facilities.
Features:
- ALI/ETL Certified
- Multi-position locks allow runways to be level at any lock position
- Single point lock release
- Includes easily removable steel approach ramps
- Perfect for home use
- Powder coat finish
- Includes jack tray
- Includes wheel caster kit
- Includes drip trays
Specs:
Capacity: 9,000 lbs. / 4082kgLifting Height: 84in
Ceiling Height to be height of highest vehicle to be raised plus: 84in
Overall Length w/ Approach Ramps: 225-1/2in
Overall Length w/out Approach Ramps: 193-1/8in
Overall Width w/ Motor: 131in
Overall Width w/out Motor: 121-1/2in
Approach Ramp Length: 36-1/4in
Runway Tread Width: 21-3/4in
Runway Length: 184-1/2in
Runway Height: 4-3/4in
Height of Columns: 97in
Clearance Between Columns: 109-1/2in
Width Between Runway Treads: 39in
Outside Runway to Outside Runway: 79-1/2in
Clearance Under Runways: 79-1/4in
Drive Through Width: 97in
Height of Columns: 97in
Power Unit: 110 Volt , 1HP - / 220 Volt Optional
Shipping Weight: 2,350 lbs.

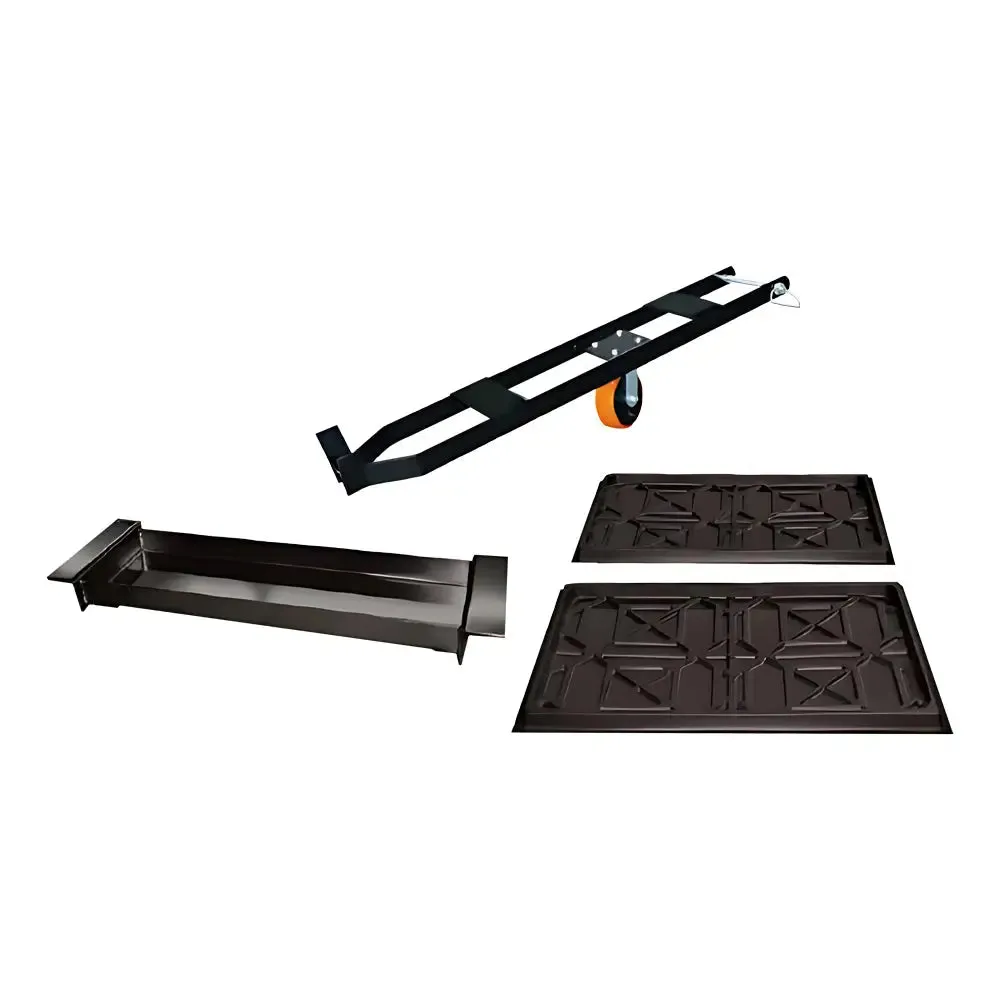

Includes:
Steel approach ramps4 x Poly casters
1 x Jack tray (4,000 lbs)
4 x Drip trays
